Replicant GEN 1 Platform
Replicant GEN 1 is a long-range FPV platform built around true 3D structural design: carbon-fiber tubes for arm stiffness, volumetric 3D-printed nodes for real load paths, and an enclosed aerodynamic chassis that treats packaging as part of performance. The result is a lighter, stiffer airframe with cleaner airflow, protected electronics, rapid battery swaps, and footage-first vibration control — designed for builders.
Highlights
- True 3D tubular arms → truss-level rigidity with cleaner aerodynamics
- Rail-mounted battery → fast, repeatable swaps + mass damping for stable footage
- Intelligent power button + full enclosure → safer, cleaner operation with protected internals
Competitive Positioning
This isn't a bando basher or a 3" proximity rig designed for constant concrete abuse. Replicant is designed to compete against long-range truss-style platforms and larger cine-class flat-plate frames — while reducing drag, improving protection, and cleaning up the overall build and operator workflow.
.png)

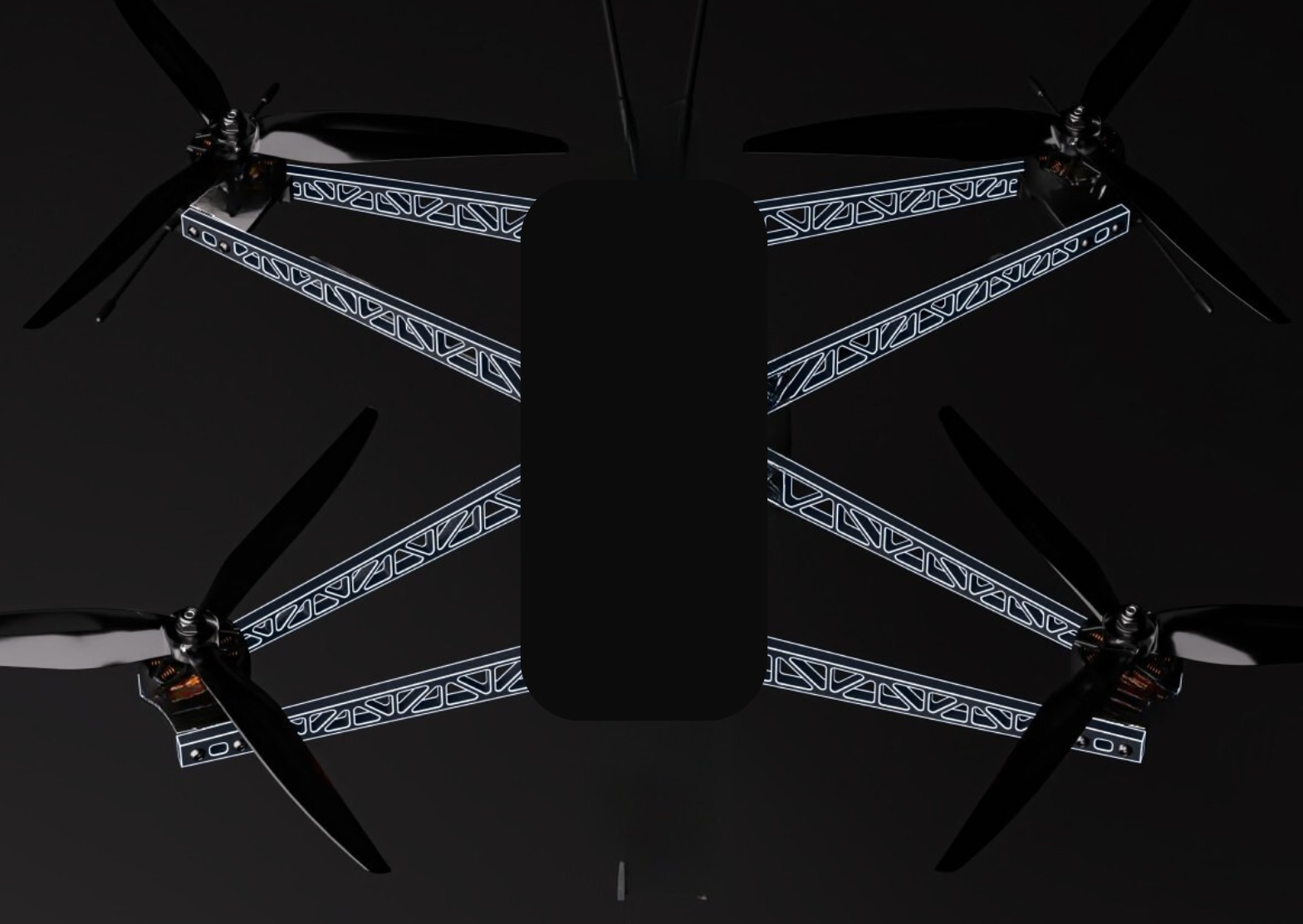

Truss Frame: 2.5D flat plate with cutouts
Replicant: True 3D volumetric structure
| Attribute | Replicant GEN 1 | Truss Frames | Bando Basher |
|---|---|---|---|
| Aerodynamics | Excellent (tubular arms, clean surfaces) | Often compromised (flat plate arms) | Not the focus |
| Arm Stiffness | Excellent (CF tubes + structural nodes) | Excellent (long plates) | Moderate |
| Crash Robustness | Good | Good | Excellent |
| Weight Efficiency | Excellent | Moderate | Moderate |
Takeaway: Replicant aims for truss-level arm stiffness with significantly cleaner aerodynamics — no flat plates creating turbulence and drag.
Who This Drone Is For
Anyone who wants a high-performance long-range platform — and is willing to build it properly.
Replicant is open-source for builders: download it, print it, build it, repair it, and modify it. (Details on what's open vs not are covered later.)
Prop Size Flexibility
The tubular arm design accommodates multiple prop sizes, each delivering distinct flight characteristics:
| Prop Size | Character | Best For |
|---|---|---|
| 6" | Highly maneuverable, fast acceleration, low rotational inertia | Aggressive flying, tighter spaces |

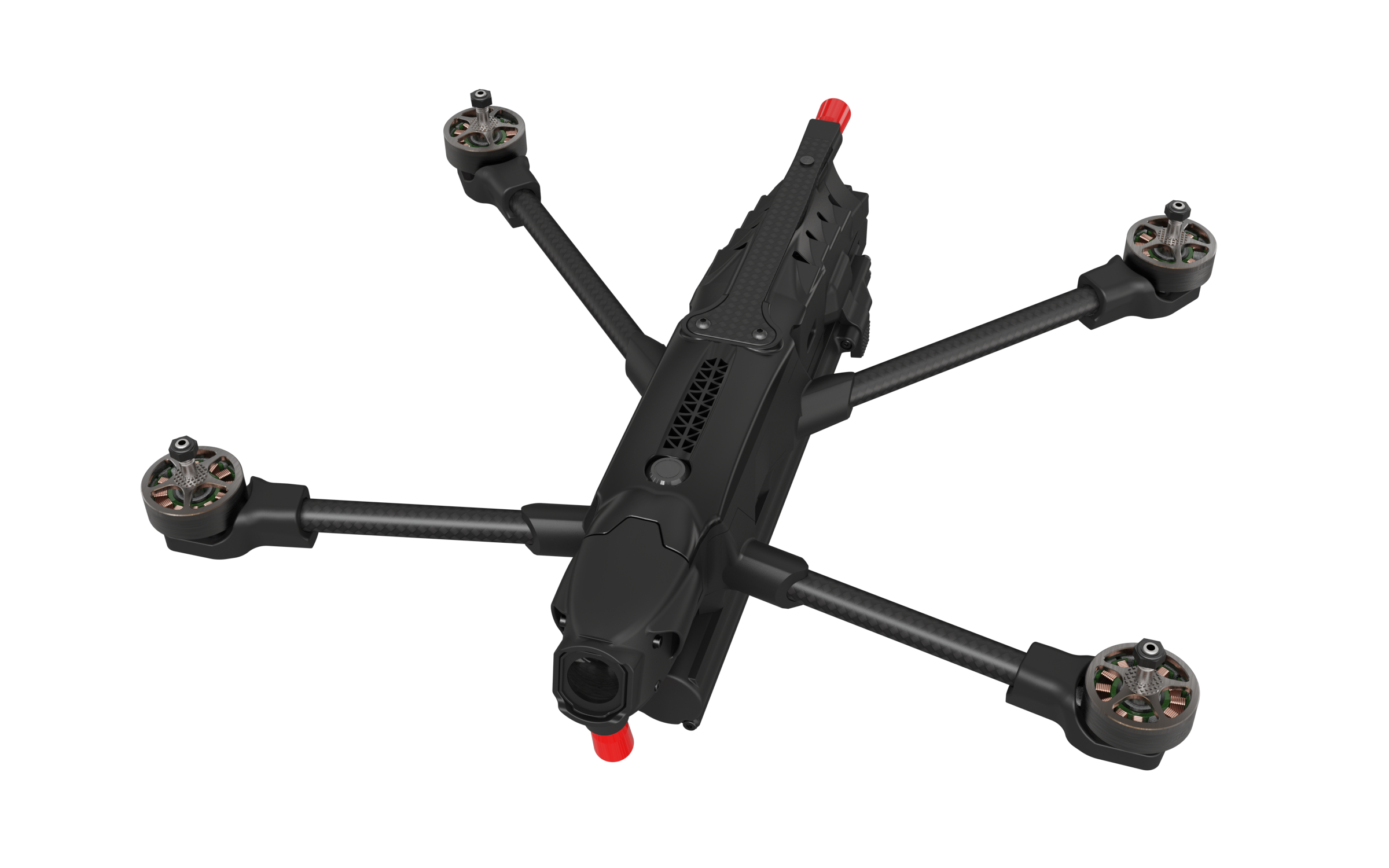

| 7" | Balanced performance (design target) | General long-range, cinematic work |
| 8" | Efficient, low disk loading, extended range | Maximum endurance, smooth cruising |
You could run 5" if you really wanted — but Replicant is optimized around 7–8" long-range use.
Replicant competes against:
- Traditional 7" long-range frames
- Larger cine-class truss / flat-plate designs
Builder Requirements & Expectations
This isn't bind-and-fly. You're building it yourself — which means you get performance, repairability, and control… and you also take responsibility for fitment and assembly.
Equipment Needed
- FDM 3D printer capable of CF-Nylon (or equivalent engineering filament)
- SLA printer for the top cover (or alternate fabrication route if you offer one)
- Standard drone building tools (hex drivers, soldering gear, threadlock; calipers helpful)
Stack Constraints
The chassis supports common stack footprints, but it's designed around compact packaging and proven ESC options.
| Component | Recommendation |
|---|---|
| Flight Controller | Open choice — compatible with common 20x20 or 30x30 footprints |
| ESC | iFlight Borg Mini (stack) or iFlight BLITZ E55S / E55 (55A class) |
| GPS | MATEK M10-5883 (or similar class) |
If you have the skills, tools, and patience to build your own drone, Replicant delivers performance that competes with — and in some respects exceeds — many commercial alternatives.
Flight Dynamics Preview: Mass Distribution
Replicant's geometry produces distinct flight characteristics through deliberate mass placement.
Roll axis — compact inertia: the 6S cell arrangement concentrates mass near the roll axis. Combined with lightweight carbon arms and printed motor mounts, this delivers snappy roll response with low rotational inertia.
Pitch axis — extended inertia: the elongated battery runs fore-aft, increasing pitch inertia. That isn't a drawback — it adds stability in forward flight and smooth pitch transitions for cinematic work.
Why this matters
- Roll: quick direction changes, responsive to stick input
- Pitch: damped oscillation, stable in cruise, predictable accel/decel
- Yaw: balanced by symmetric arm geometry
This mass distribution is optimized for long-range cruising and cinematic flight, not freestyle acrobatics.
Blackbox Logs: Real-World Performance Data
Download these blackbox logs to analyze flight performance, tuning, and noise characteristics in Betaflight Blackbox Explorer or PIDtoolbox:
100% Throttle Ramps
- 📊 Flight Log A
- 📊 Flight Log B
- 📊 Flight Log C
- 📊 Flight Log D
- 📊 Flight Log E
- 📊 Flight Log F
- 📊 Flight Log G
Hover Logs
6 Inch Prop Performance Logs
- 🔹 6" Prop Log A
- 🔹 6" Prop Log B
- 🔹 6" Prop Log C
- 🔹 6" Prop Log D
- 🔹 6" Prop Log E
- 🔹 6" Prop Log F
- 🔹 6" Prop Log G
This is an example of the kind of noise performance you can expect from a well-built drone—but it's not a "Goldilocks" perfect-case build. This blackbox log came from a quad with one slightly gravelly motor and relatively new, but loosely fitting, 7-inch props. With fresh motors and tighter-fitting props, the noise performance would likely improve further.
Why Redesign the Drone?
FPV drone design has remained largely unchanged since the early 2000s, relying on basic materials and assembly methods. While consumer drones have advanced significantly with sophisticated features and user-friendly designs, the FPV community has been underserved by comparison.
With the huge strides in 3D printing and other manufacturing enablement technologies, and broad uptake of these technologies in the builder community, that needn't be the case.
The Replicant breaks this mold by:
- Leveraging modern manufacturing techniques for superior performance
- Prioritizing builder accessibility and repairability
- Delivering professional-grade flight characteristics
- Maintaining open-source philosophy for community advancement

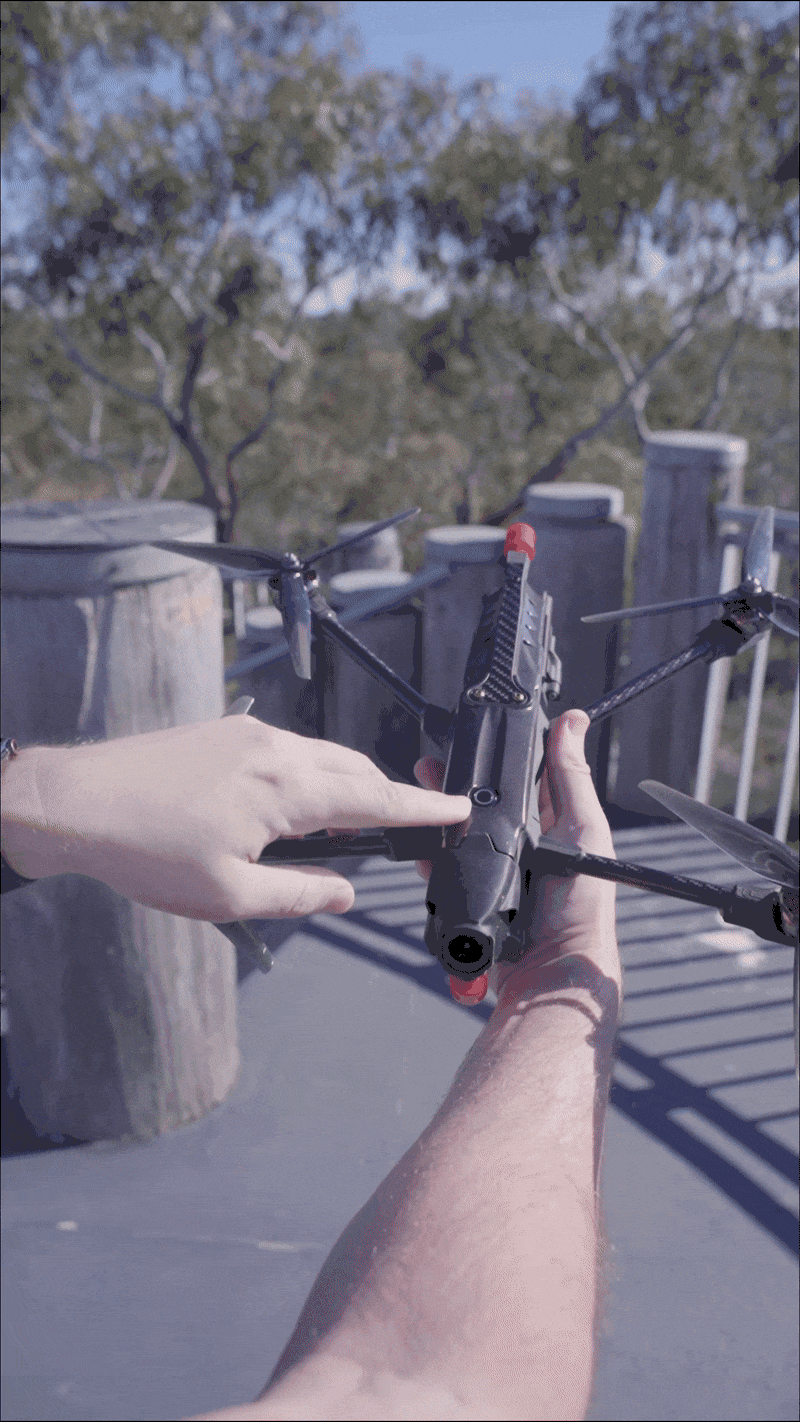

The Catalyst: Intelligent Power Control
The Replicant is one of the only drones available today with a dedicated arm/disarm button. We use a microcontroller to provide intelligent button behavior: press and hold for 2 seconds to arm/turn on, shorter hold to disarm/turn off. This prevents accidental disarming during flight while providing tactile feedback for reliable operation.

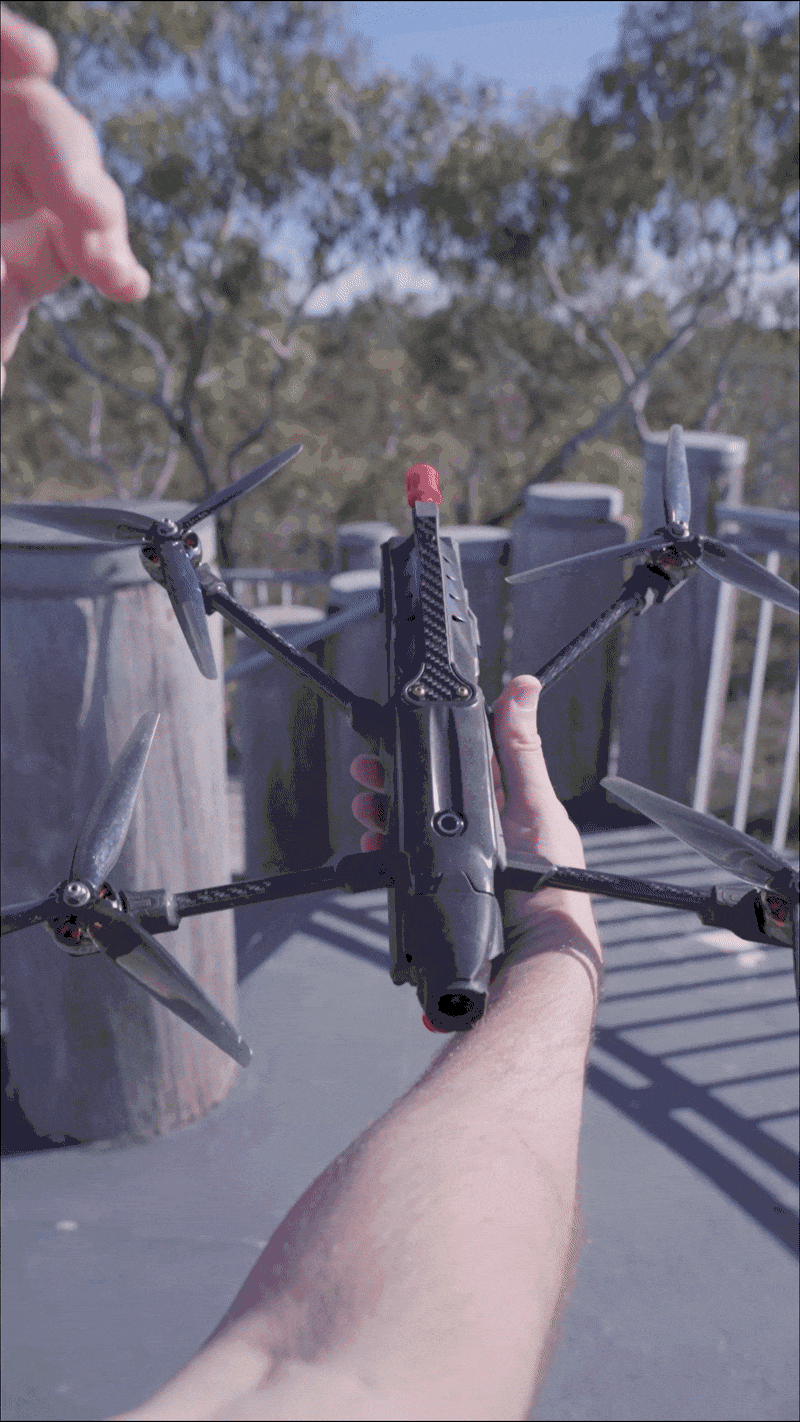

Rail-Mounted Modular Battery System

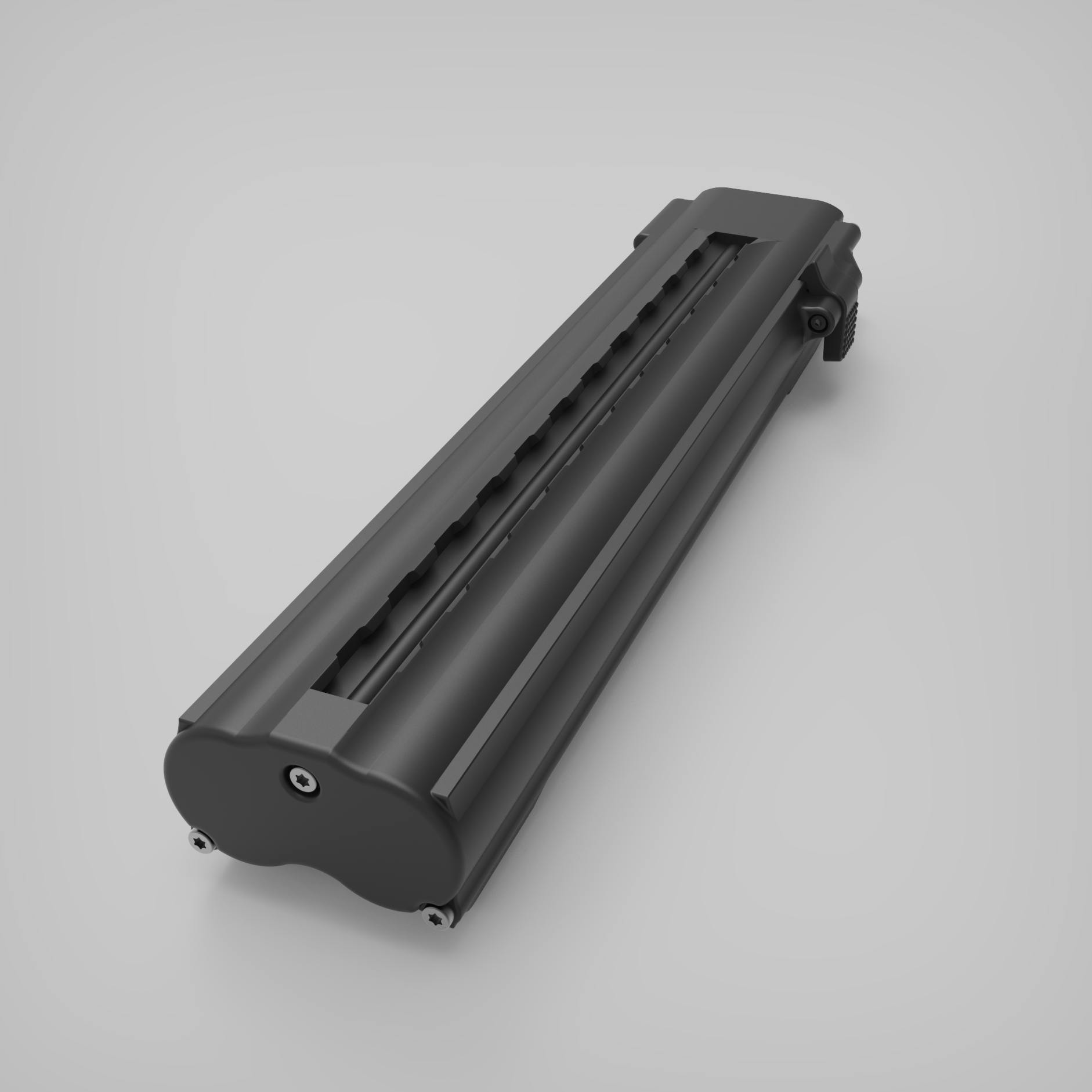

Eliminate velcro strap fiddliness with our rail-mounted modular battery system, built with the operator in mind. It allows for rapid, effortless battery swaps while the battery's mass and rigidity enhance flight characteristics and damp vibrations that could otherwise cause jello in your footage.
Front isometric view

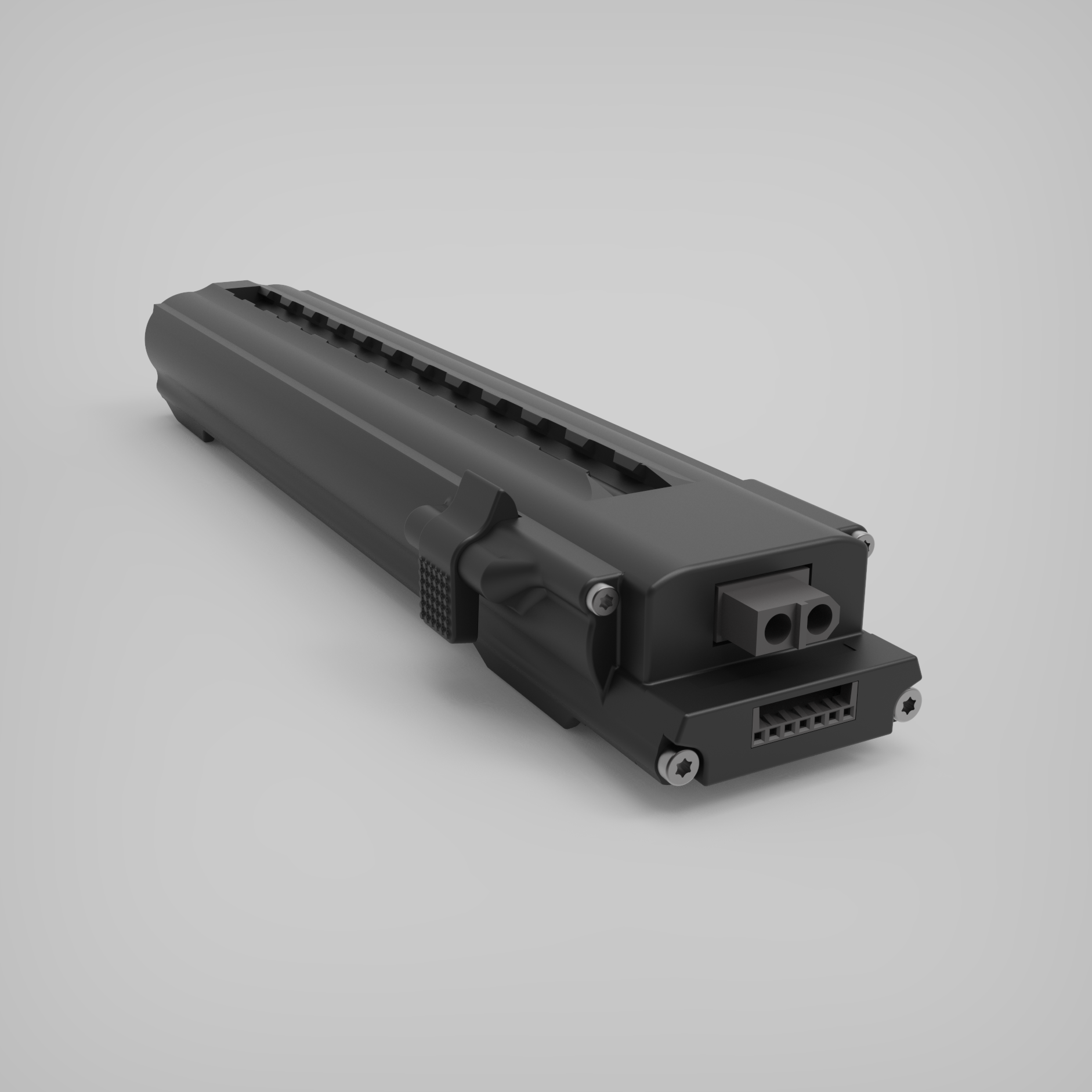

Connector detail
Rapid Battery Swaps: Professional Performance
Our rail-mounted battery system provides secure mounting with rapid swap capability, designed for professional operation where reliability and speed matter.
Battery Specifications:
- Cells: Eve 50 PL in 6S1P configuration
- Capacity: 5000mAh per pack
- Mounting: Rail-based system for rapid, secure swaps
- Design: Single pack configuration optimized for current build
Vibration Mitigation from Day 1

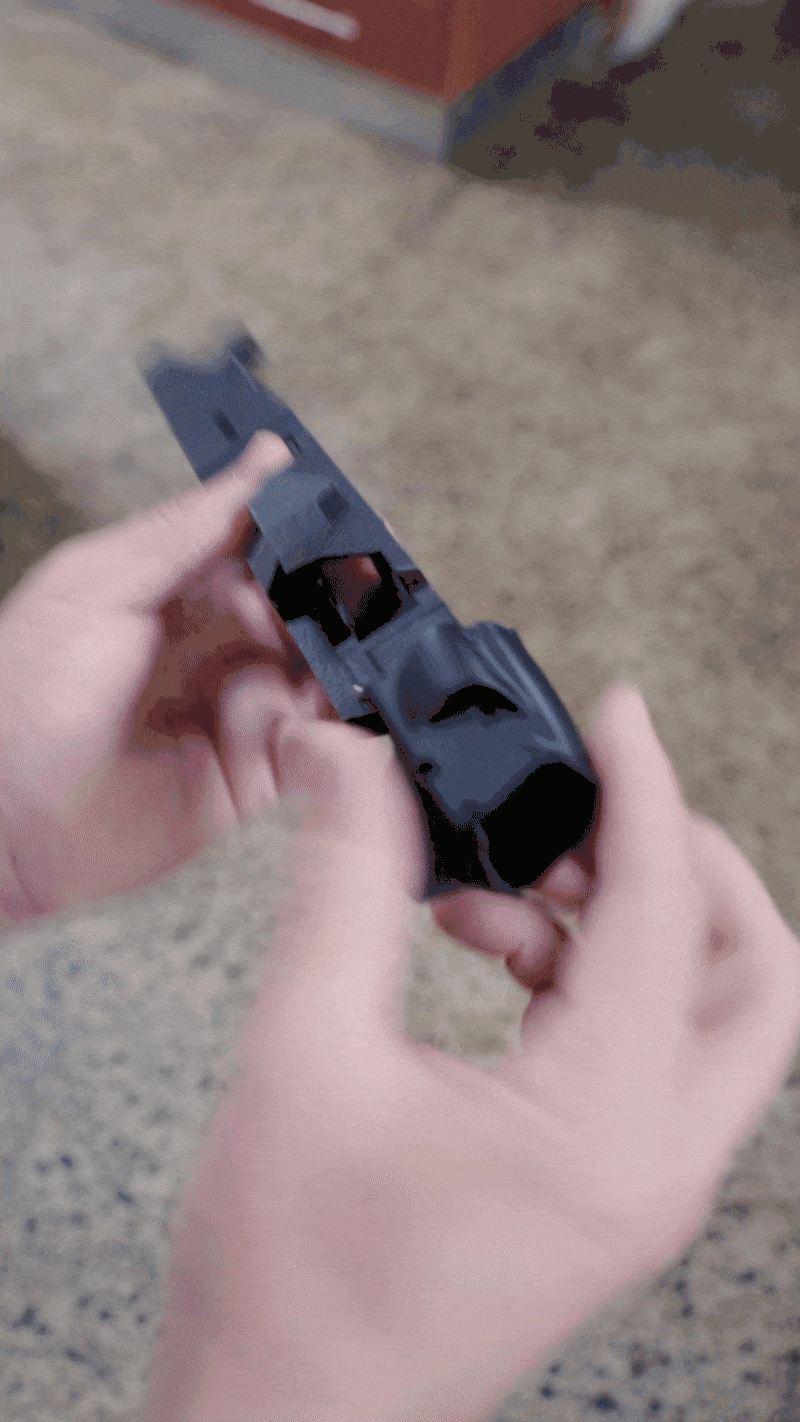

Our nose cone is entirely TPU, effectively isolating normal drone noise, resulting in clean, clear, jello-free footage.
Vibration Control Features:
- TPU nose cone for acoustic isolation
- Battery mass damping for reduced vibrations
- Carbon fiber construction for rigidity

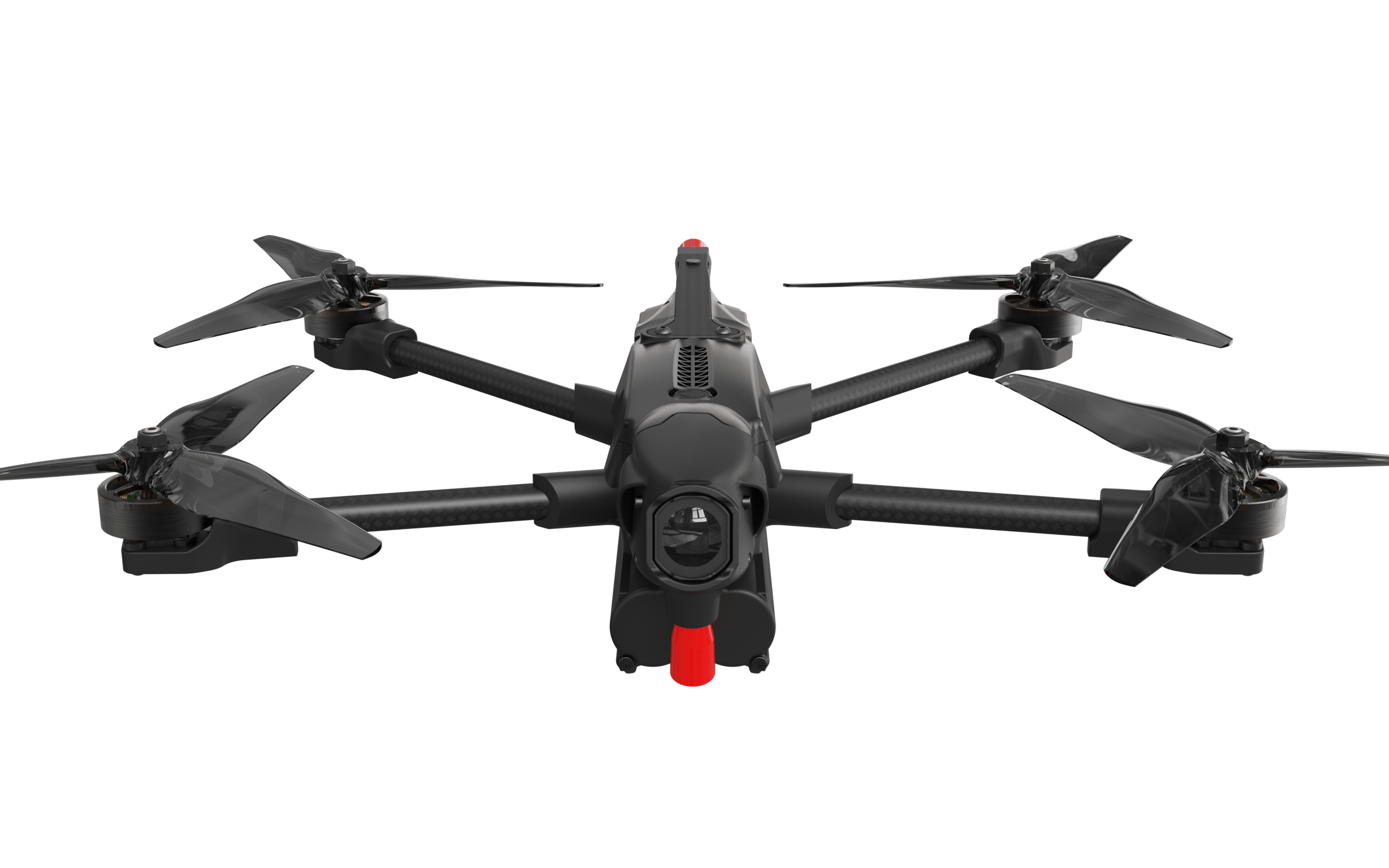

Aerodynamic Design: Efficiency Through Form
If it flies, it better be aerodynamic. This is not hard, people. The Replicant achieves optimal efficiency through:
- Tubular arms for minimal drag
- Smooth uncluttered top surface for laminar flow
- Cutaway exospine for reduced frontal area
- Underslung battery system for balanced weight distribution
Aerodynamic Improvements
The Replicant GEN 1 features several aerodynamic optimizations designed to reduce drag, improve cooling, and enhance overall flight performance.

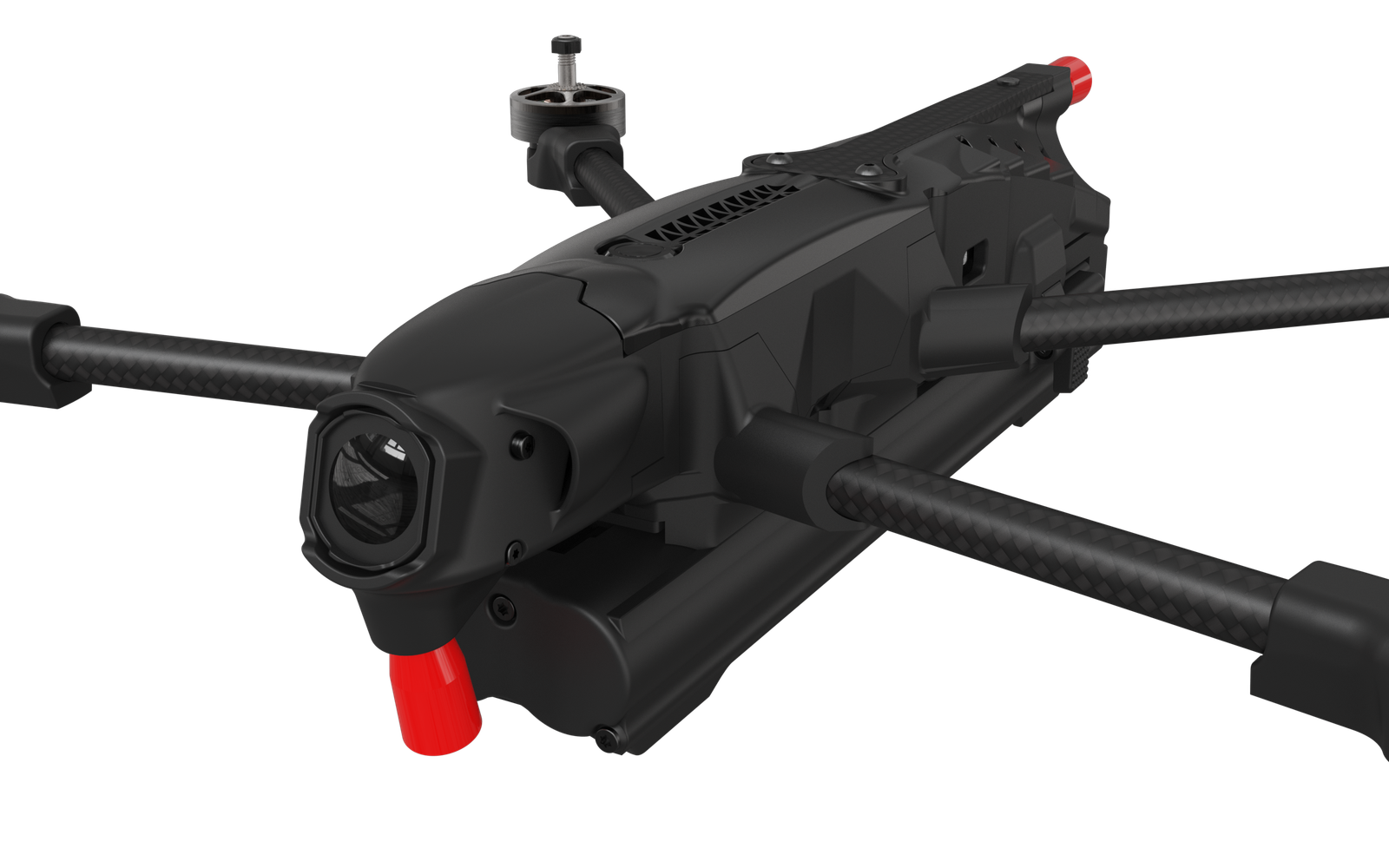

Front Cooling Duct
The front cooling duct optimizes airflow through the electronics bay, providing efficient cooling while maintaining aerodynamic efficiency.

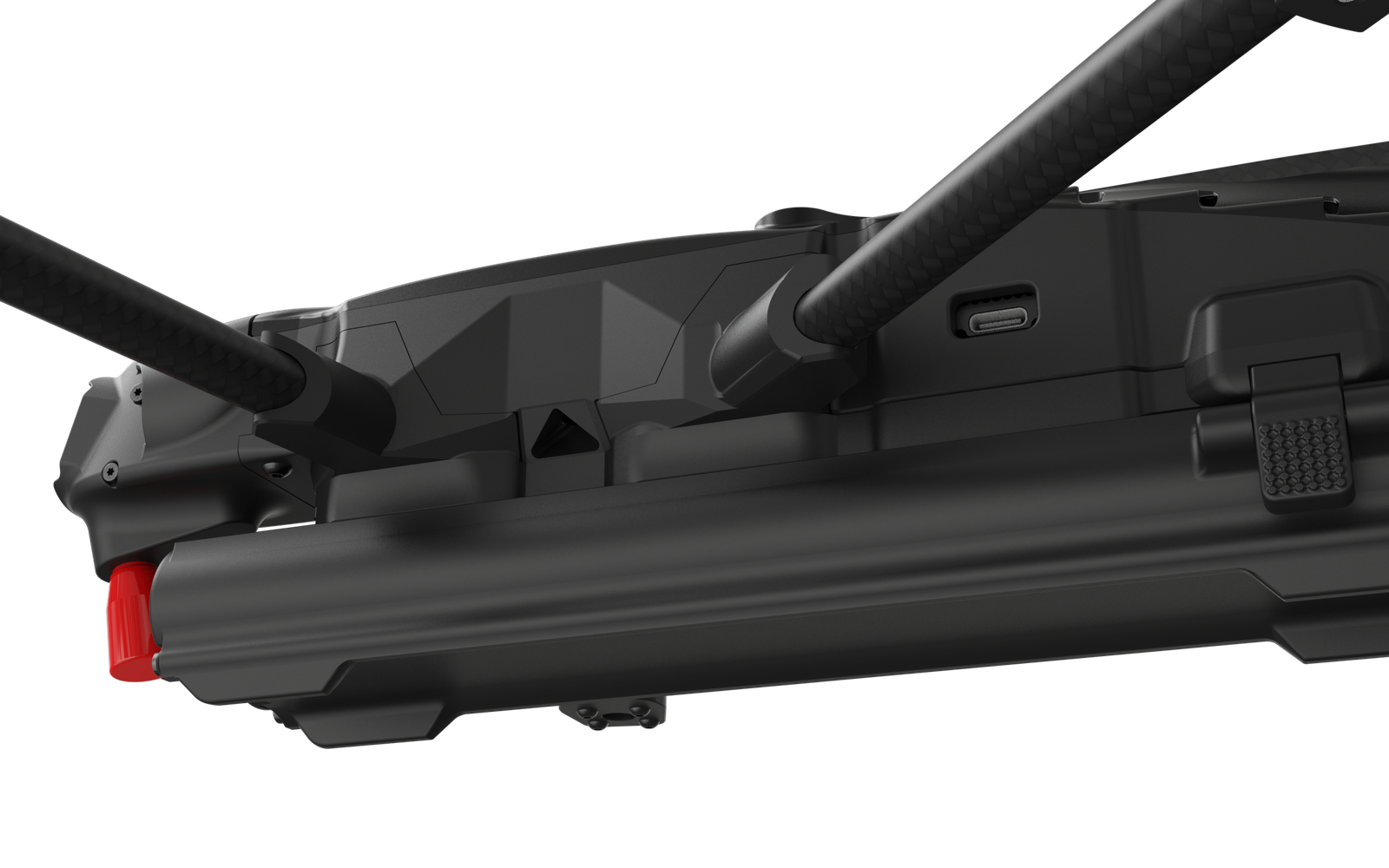

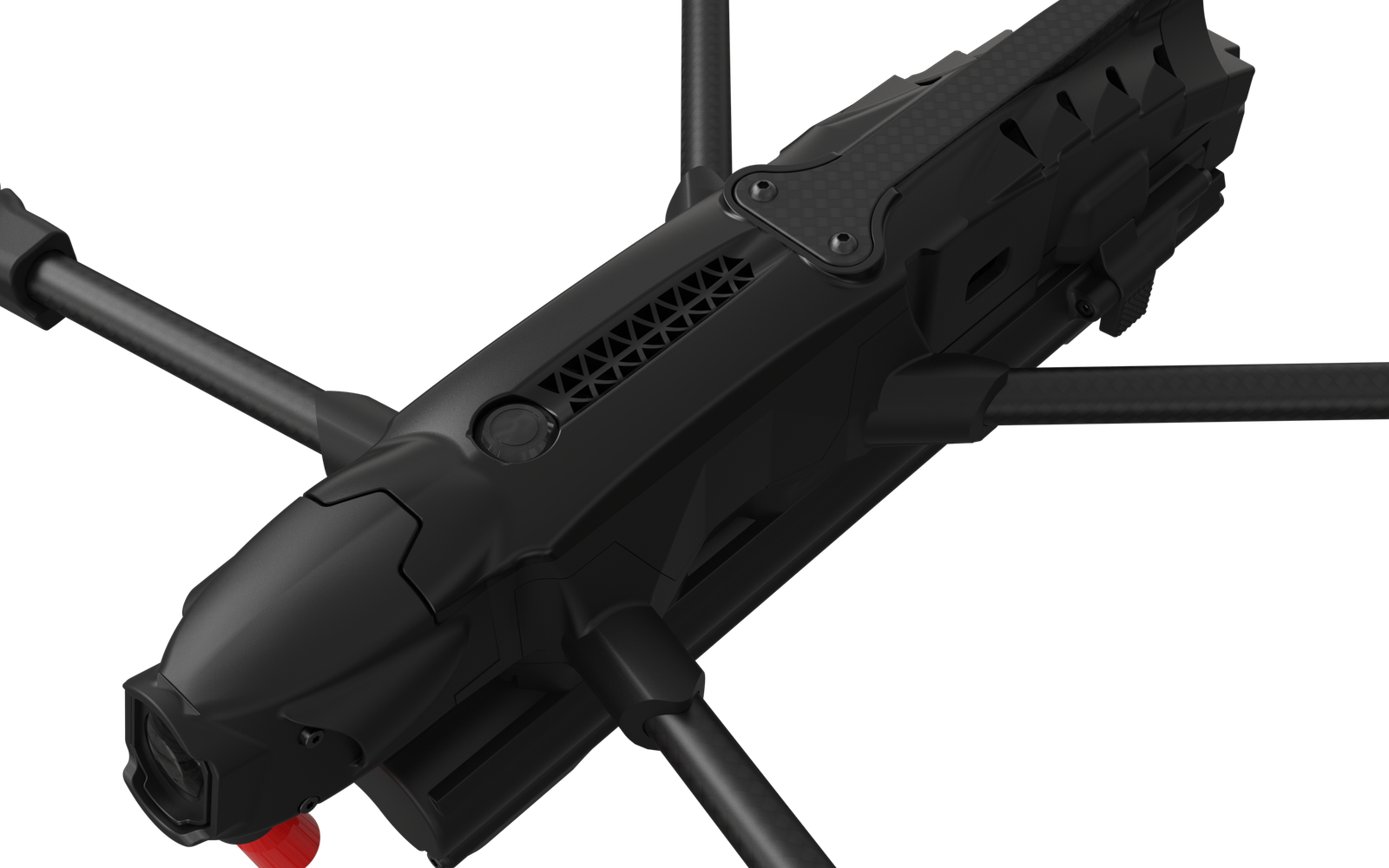

Stack Ventilation System
The flight controller and ESC stack features both upper and lower ventilation ports for optimal cooling air flow through the electronics bay.

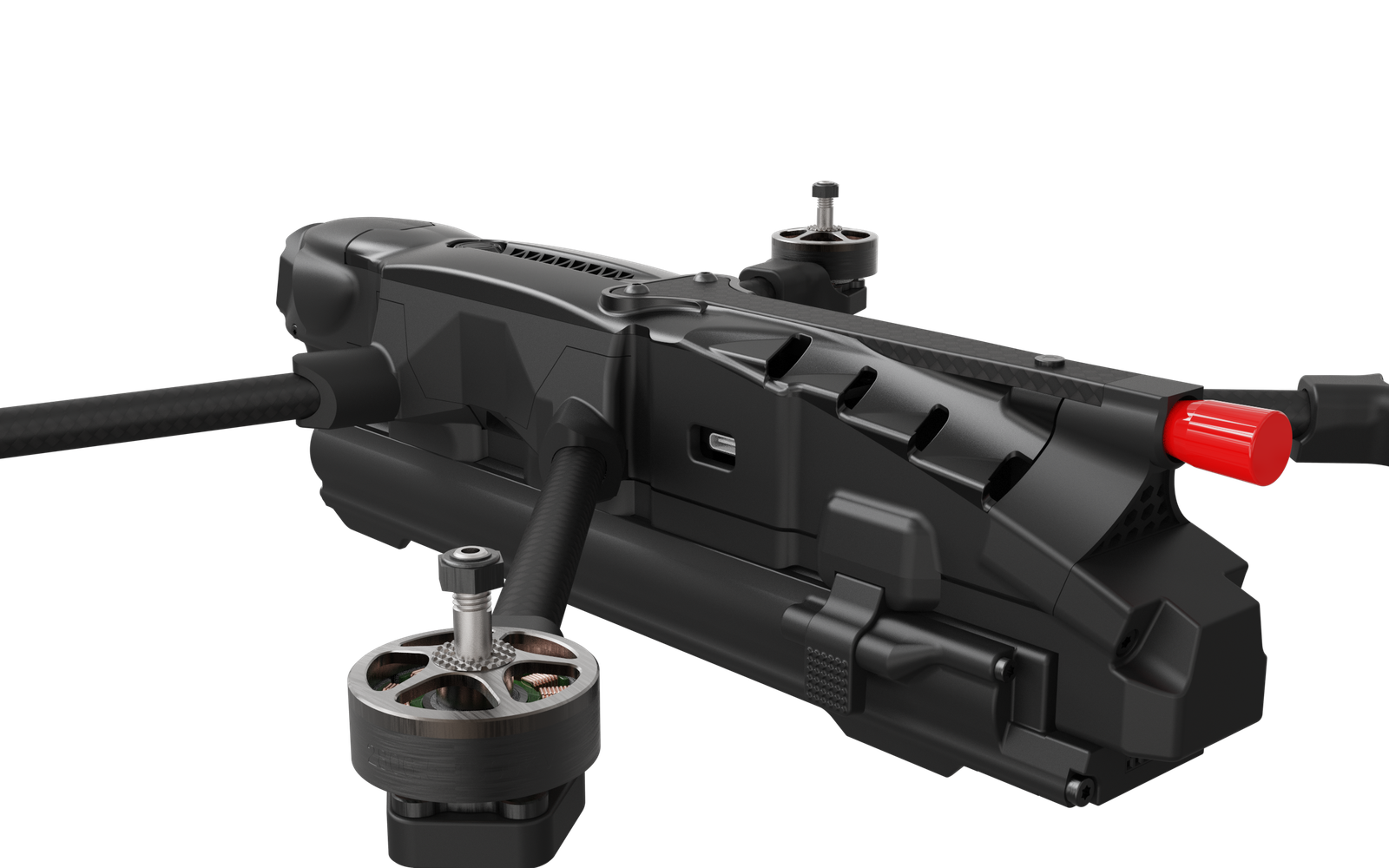

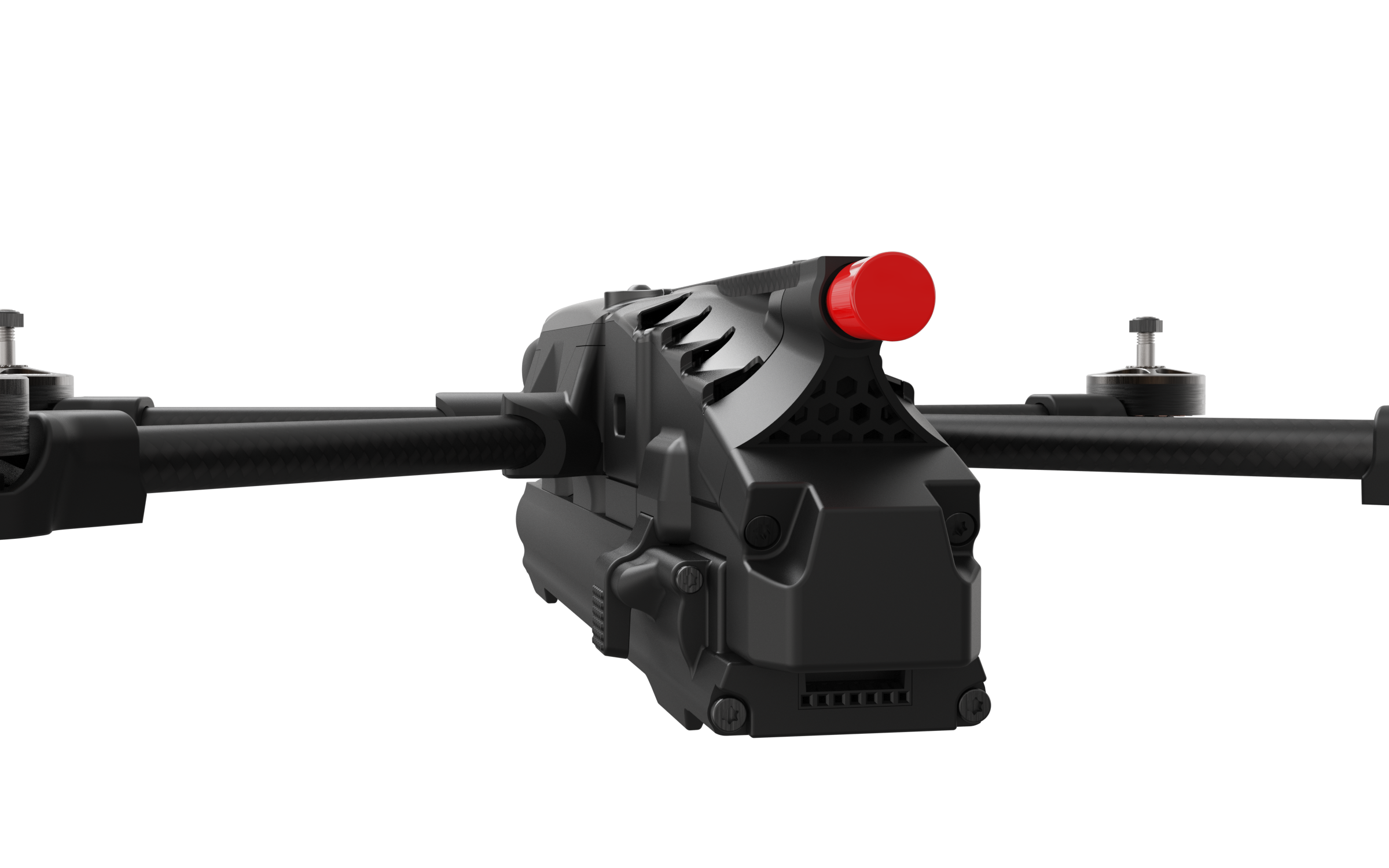

Dorsal Venturi Ducts
These are the dorsal venturi ducts and they forcefully ventilate the stack and O4 Pro during forward flight. They also materially impact a reduction in frontal and wetted area further reducing parasitic losses.
These aerodynamic improvements work together to reduce parasitic drag, enhance cooling efficiency, and improve overall flight performance.
Strategic Construction: Strength Where Necessary

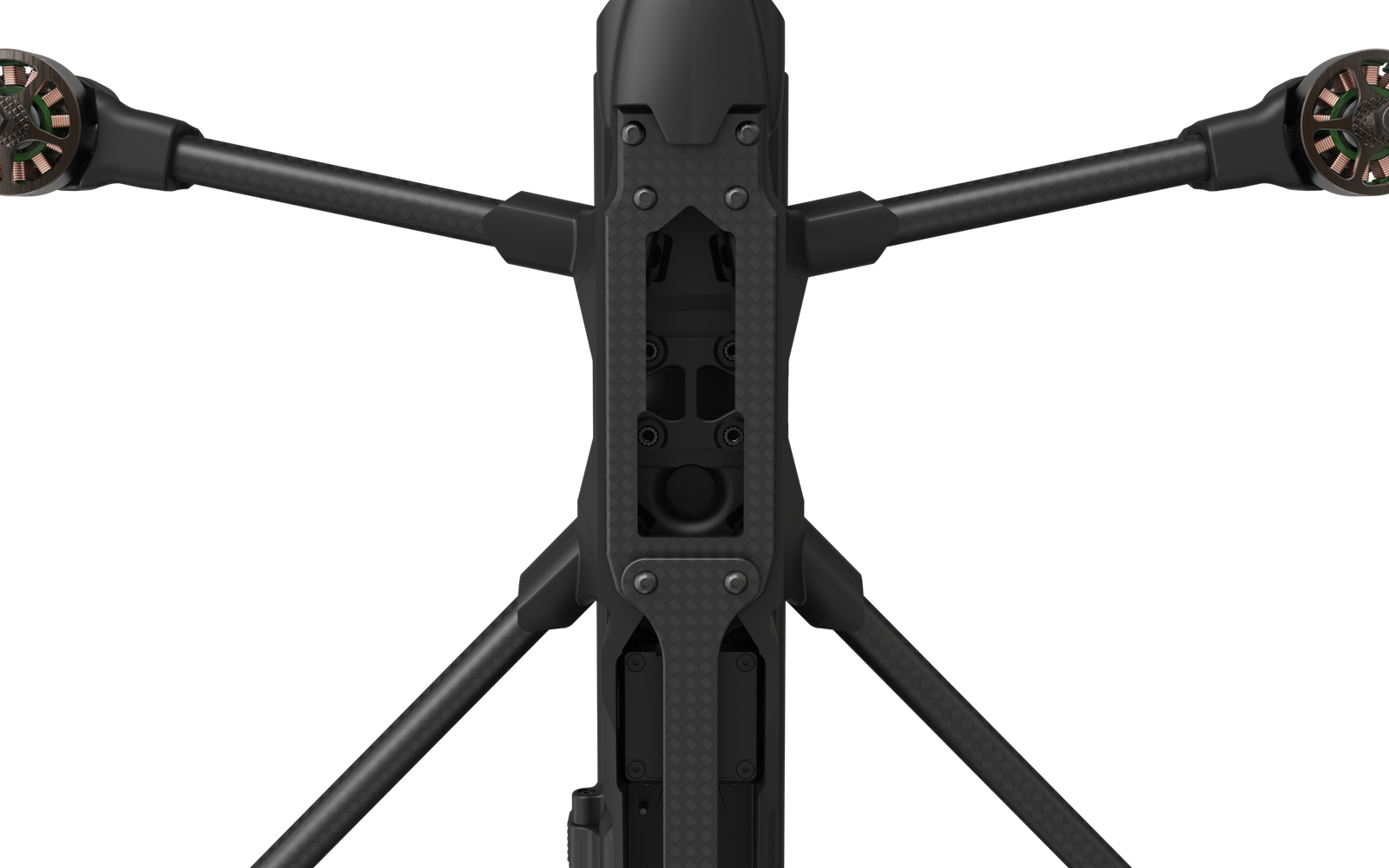

We're not married to any particular construction technique. That's why we've used printed components strategically in conjunction with the high specific strength of carbon plates and tubes to achieve the best of both worlds.
Construction Philosophy:
- Carbon Fiber Plates: High strength-to-weight ratio for structural integrity
- CF-Nylon Printed Parts: Optimized for complex geometries and assembly
- Carbon Tubes: Superior stiffness for arm construction
- Modular Design: Easy maintenance and upgrades

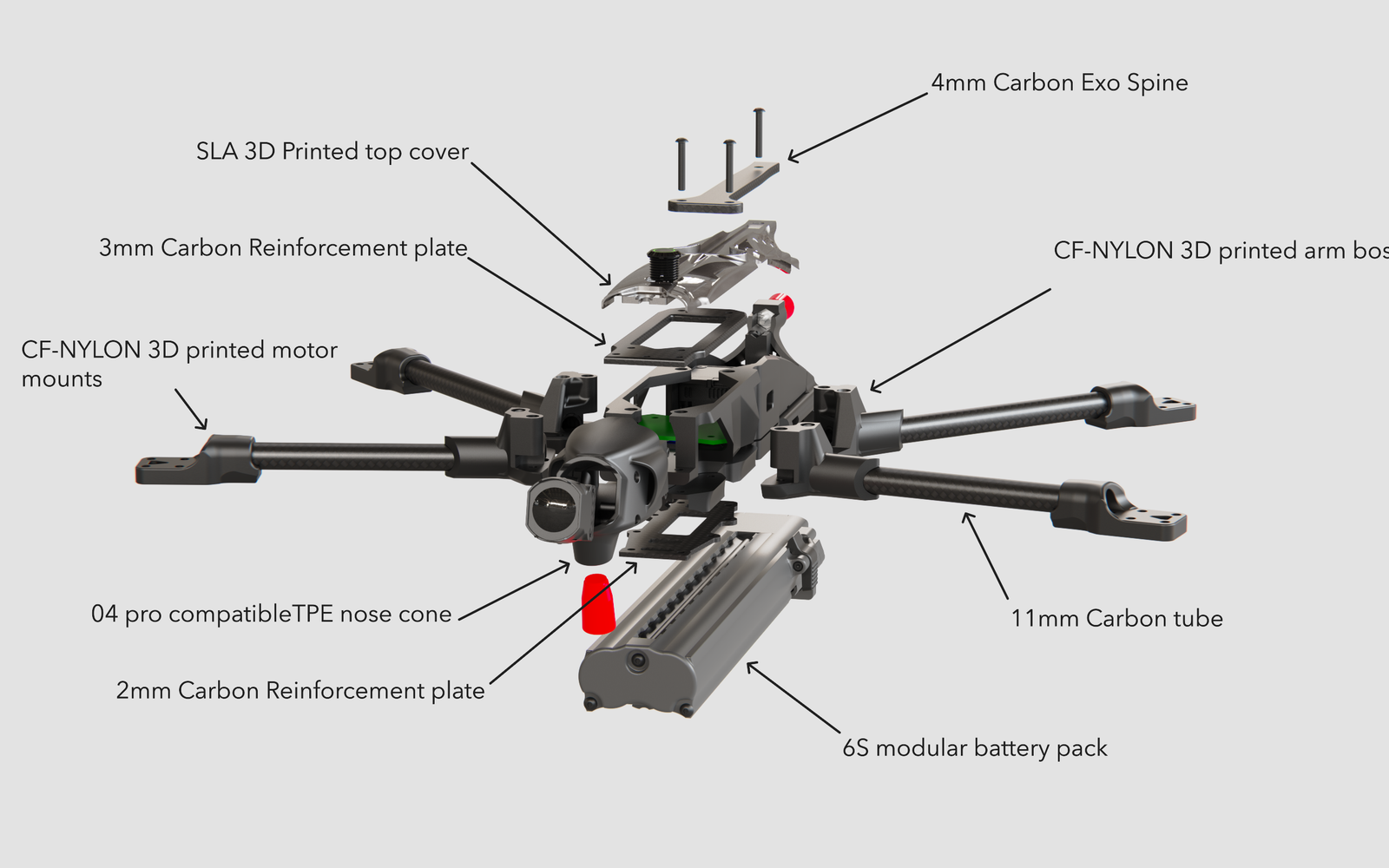

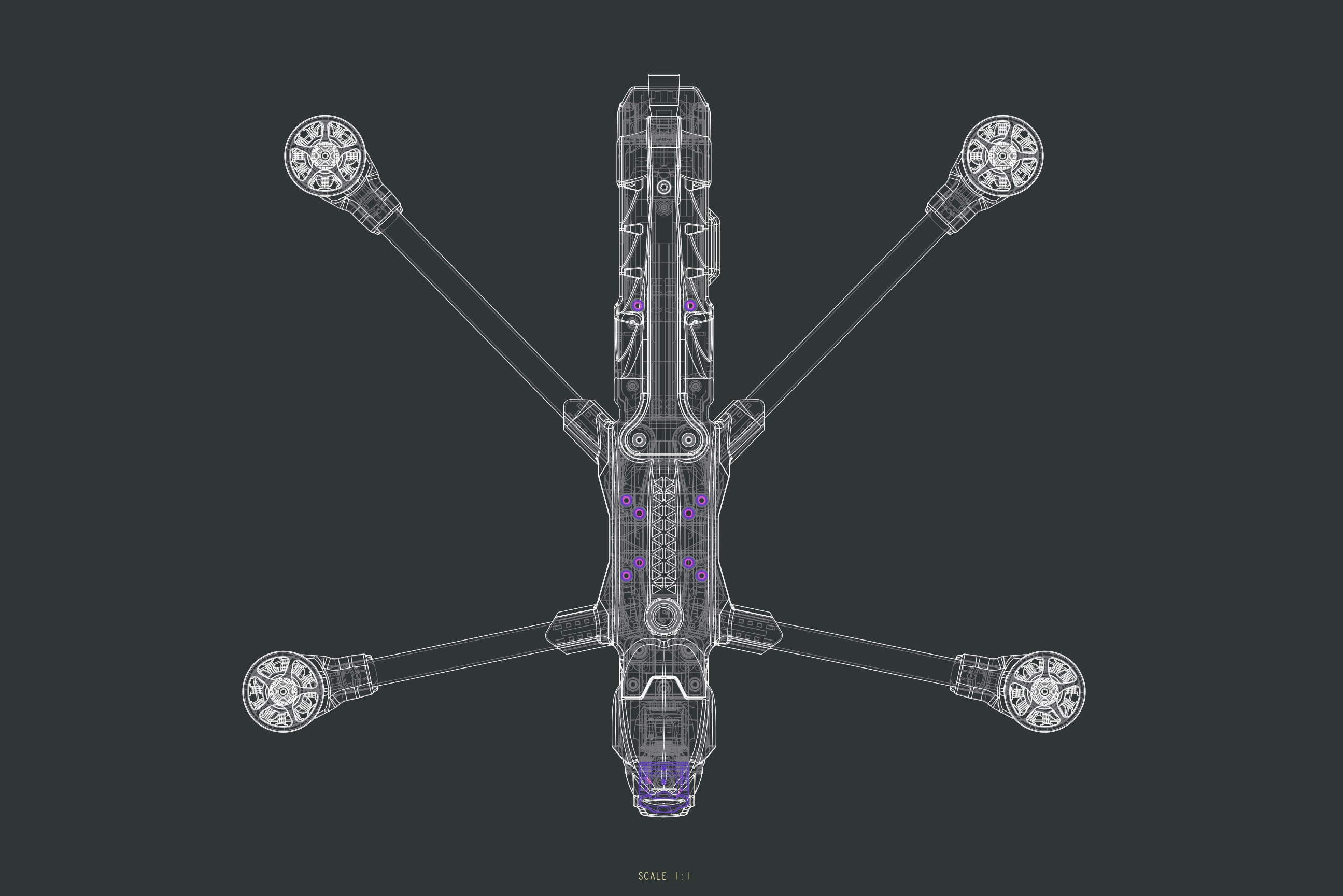

Fully Enclosed Electronics Protection
We're doing away with janky and half-baked exposed internal electronics. We engineered a fully enclosed chassis that protects your drone's delicate and expensive internals, while the tubular arms serve as ideal protective conduits for the motor wiring harness.
Optimized Antenna Placement
This drone doesn't wear bunny ears—we're changing how drones are packaged and antennas don't escape. We've placed dual Cavalry 2.4 and 5.8GHz antennas on each end of the drone. This was simple, obvious packing optimization spotted during the design phase.
Superior GPS Performance

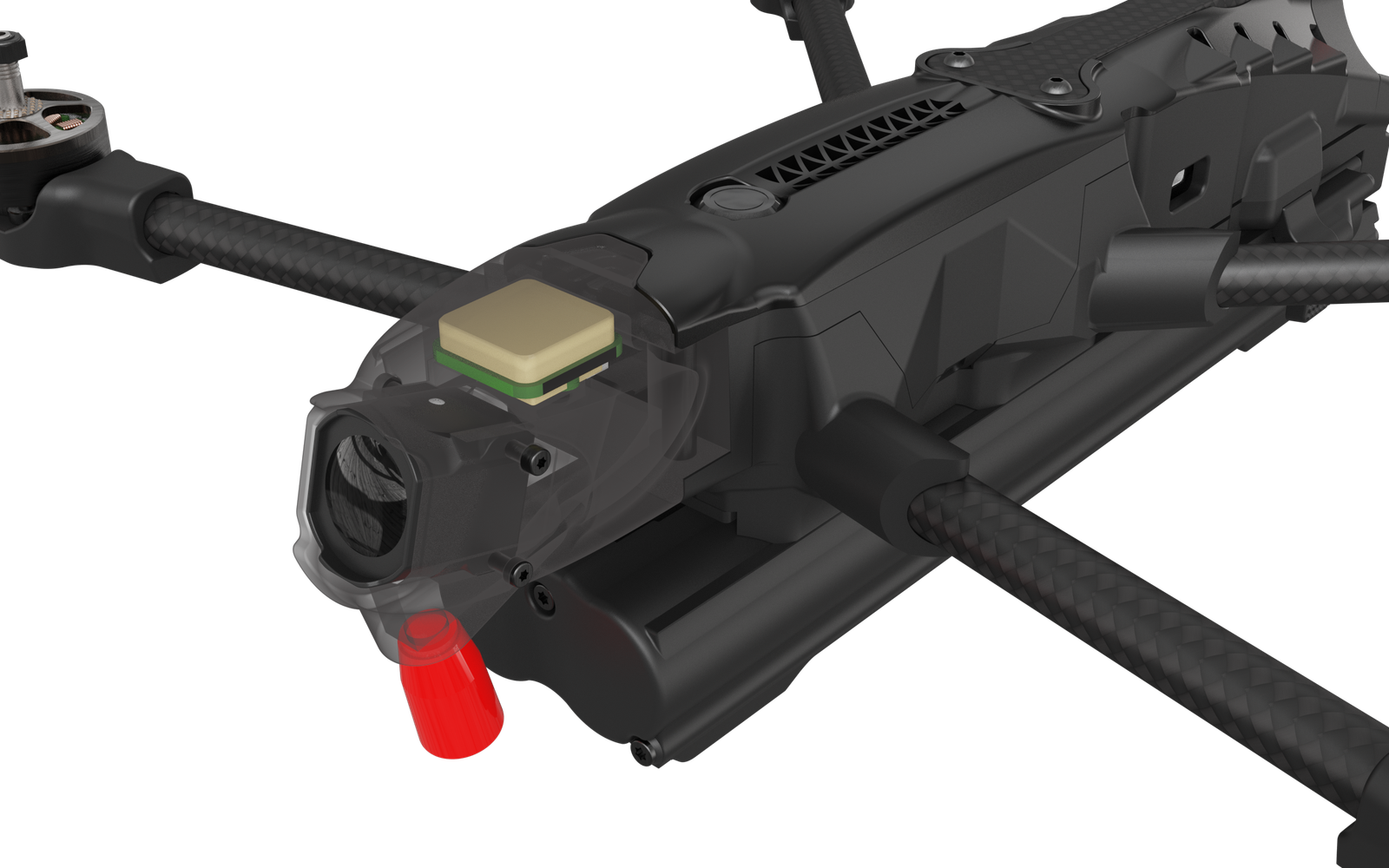

Few other drones physically isolate the GPS better than ours. With our underslung battery and uncluttered top surface, we provide unimpeded sky access and below-average EMI exposure. The result? Fast satellite acquisition and reliable GPS performance.
GPS Performance:
- 25-30 satellites typically visible
- Reduced Satellite acquisition time
- Ceramic GPS antenna is shielded from damage inside the nose cone
- Minimal EMI interference
- Optimal sky visibility
Open Source Airframe, Professional Power System
If you crash a drone, the most likely thing you're going to break is your ego. A close second is a drone arm. We want to keep you flying, so we're open-sourcing the Replicant airframe — print it, mod it, fix it.
What's Open Source:
- Complete CAD files (STEP/3MF) for all 3D printed components
- DXF files for carbon fiber plates — cut your own or buy ours
- Full fastener specifications — source yourself or buy our kit
- TPU flexible parts for vibration dampening
- Comprehensive build guides with videos and detailed instructions
What's Not Open Source:
- Battery Pack — Proprietary design using spot-welded Eve 50 PL cells. We don't release these files for safety reasons — improper cell handling is a fire/injury risk.
- Power Management Board — Closed source hardware and firmware. This is our secret sauce for the intelligent arm/disarm behavior and includes safety-critical voltage monitoring.
This isn't about gatekeeping — it's about keeping you safe and keeping the lights on.
Repair & Modify Freely:
- Fabricate replacement parts on your 3D printer
- Modify the frame for custom payloads or configurations
- Build entirely new drone variants from the ground up
- Community-driven development and enhancements
Platform Benefits Summary
For Builders:
- Create your own drone frame at home
- Repair damaged drones without ordering parts online
- Customize and optimize for specific applications
- Access to professional-grade flight characteristics
For Pilots:
- Reliable, consistent flight performance
- Easy maintenance and upgrades
- Superior video quality with vibration mitigation
- Professional-grade build quality
For the Community:
- Open-source design philosophy
- Advanced manufacturing techniques accessible to builders
- Foundation for future drone platform development
- Educational resource for FPV technology
Next Steps
- Download CAD Files - Get started with the Replicant platform
- Review BOM - Understand component requirements
- Begin Assembly - Start building your Replicant
